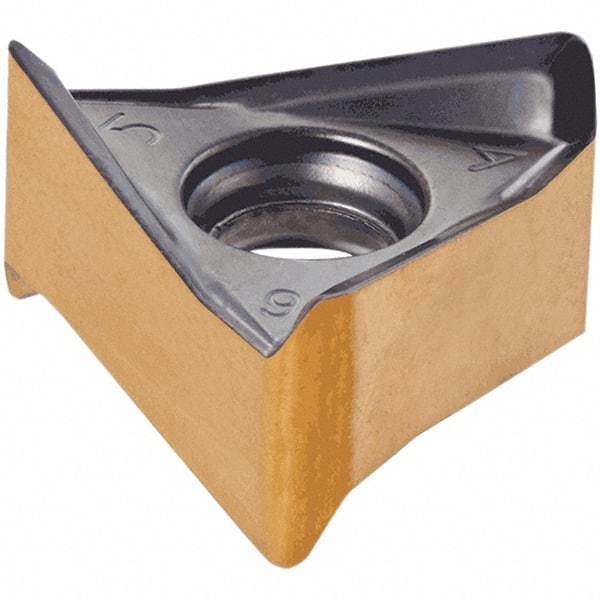

Iscar - HTP LNMT0604 ER Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 6.84mm Thick, 0.6mm Corner Radius
Item #: 46672622
Brand: Iscar
Model #: 5668908
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HTP LNMT |
| Insert Size | 0604 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 4.06 |
| Width (Decimal Inch) | 0.1600 |
| Length (mm) | 6.50 |
| Length (Decimal Inch) | 0.2560 |
| Thickness (mm) | 6.84 |
| Thickness (Decimal Inch) | 0.2690 |
| Corner Radius (Decimal Inch) | 0.0240 |
| Corner Radius (mm) | 0.60 |
| Coating Process | PVD |
| Shape | Tangential |
| Chipbreaker | ER |
| Manufacturers Catalog Number | HTP LNMT 0604 ER |
| ISO Number | HTP LNMT 0604 ER |
| ANSI Number | HTP LNMT 0604 ER |
