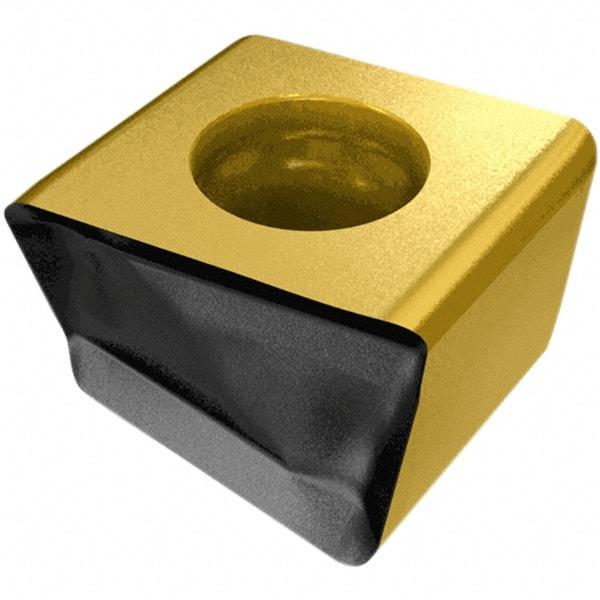

Iscar - HTP LNMT1006 ER Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 9.96mm Thick, 1mm Corner Radius
Item #: 46672614
Brand: Iscar
Model #: 5668910
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HTP LNMT |
| Insert Size | 1006 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.50 |
| Width (Decimal Inch) | 0.2560 |
| Length (mm) | 10.50 |
| Length (Decimal Inch) | 0.4130 |
| Thickness (mm) | 9.96 |
| Thickness (Decimal Inch) | 0.3920 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Coating Process | PVD |
| Shape | Tangential |
| Chipbreaker | ER |
| Manufacturers Catalog Number | HTP LNMT 1006 ER |
| ISO Number | HTP LNMT 1006 ER |
| ANSI Number | HTP LNMT 1006 ER |
