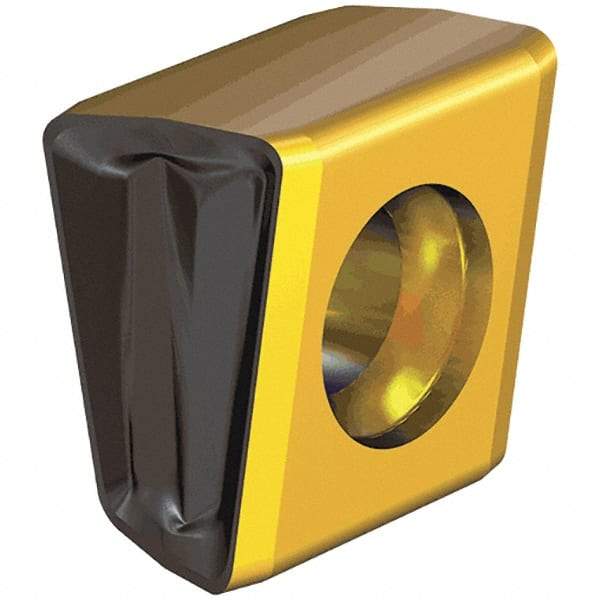

Iscar - T490 LNMT1106 CS Grade IC830 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 11.3mm Thick, 0.8mm Corner Radius
Item #: 46671178
Brand: Iscar
Model #: 5669251
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 1106 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Width (mm) | 6.00 |
| Width (Decimal Inch) | 0.2360 |
| Length (mm) | 10.50 |
| Length (Decimal Inch) | 0.4130 |
| Thickness (mm) | 11.30 |
| Thickness (Decimal Inch) | 0.4450 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Tangential |
| Insert Hand | Right Hand |
| Chipbreaker | CS |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | T490 LNMT 1106PNTR-CS |
| ISO Number | T490 LNMT 1106PNTR-CS |
| ANSI Number | T490 LNMT 1106PNTR-CS |
