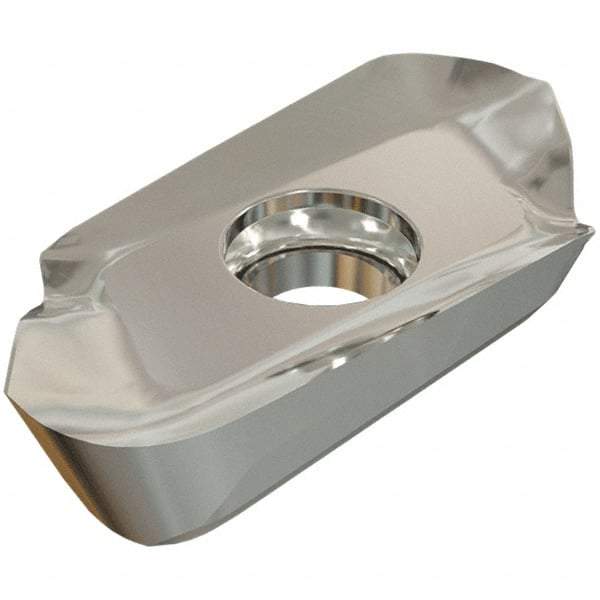

Iscar - APCR220620 HM Grade IC28 Carbide Milling Insert - Uncoated, 6mm Thick, 5/64" Corner Radius
Item #: 46670683
Brand: Iscar
Model #: 5691710
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APCR |
| Insert Size | 220620 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Width (mm) | 13.90 |
| Width (Decimal Inch) | 0.5470 |
| Length (mm) | 28.90 |
| Length (Decimal Inch) | 1.1380 |
| Thickness (mm) | 6.00 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 11.000 |
| Shape | Parallelogram |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Manufacturers Catalog Number | APCR 220620-HM |
| ISO Number | APCR 220620-HM |
| ANSI Number | APCR 220620-HM |
