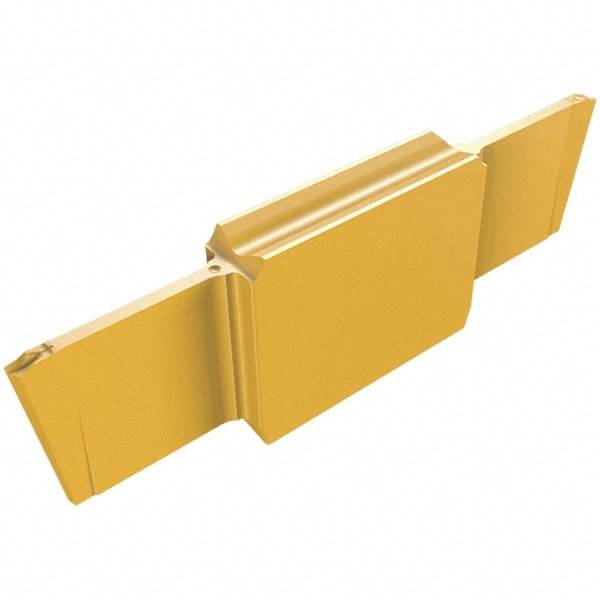

Iscar - BGM1001 15D Grade IC1008, 1mm Cutting Width Carbide Cutoff Insert - Right Hand Lead Angle, 0.1mm Corner Radius, TiAlN/TiN Finish
Item #: 46669453
Brand: Iscar
Model #: 6004968
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | BGM |
| Insert Size | 1001 |
| Lead Angle Direction | Right Hand |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0390 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Chipbreaker | 15D |
| Maximum Depth of Cut (mm) | 10.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Multi-Use Application | Parting |
| Coating Process | PVD |
| Overall Length (mm) | 38.70 |
| Overall Length (Decimal Inch) | 1.5240 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | BGM R1001J-15D |
