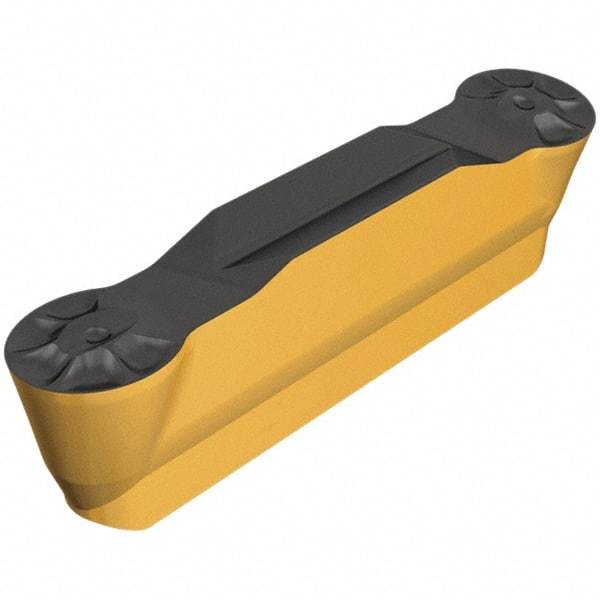

Iscar - 4020GRIP Grade IC5010, 4mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, 2mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 46667333
Brand: Iscar
Model #: 6200430
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GRIP |
| Insert Size | 4020 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Manufacturer's Grade | IC5010 |
| Coating | TiCN/Al2O3/TiN |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Coating Process | CVD |
| Overall Length (mm) | 19.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Series | Heli-Grip |
| ISO Number | GRIP 4020Y IC5010 |
| Manufacturers Catalog Number | 6200430 |
| Overall Width (mm) | 2.80 |
| Overall Width (Decimal Inch) | 0.1100 |
