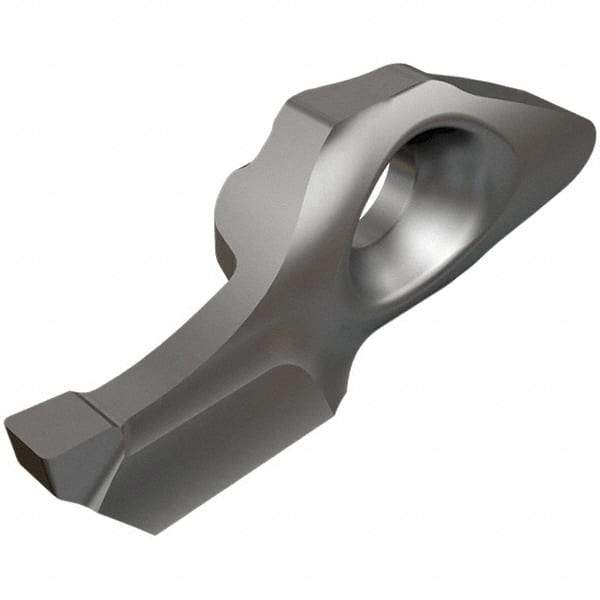

Iscar - 8-1.60-0.80MEF Grade IC908, 1.6mm Cutting Width Carbide Grooving Insert - 5.5mm Max Depth of Cut, Left Hand, 0.8mm Corner Radius, TiAlN Finish
Item #: 46666798
Brand: Iscar
Model #: 6410658
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MEF |
| Insert Size | 8-1.60-0.80 |
| Material | Carbide |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Left Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 17.40 |
| Overall Length (Decimal Inch) | 0.6850 |
| Series | MinCut |
| ISO Number | MEFL 8-1.60-0.80 IC908 |
| Manufacturers Catalog Number | 6410658 |
| Overall Width (mm) | 2.70 |
| Overall Width (Decimal Inch) | 0.1060 |
| Insert Thickness (Decimal Inch) | 0.2600 |
| Insert Thickness (mm) | 6.6000 |
