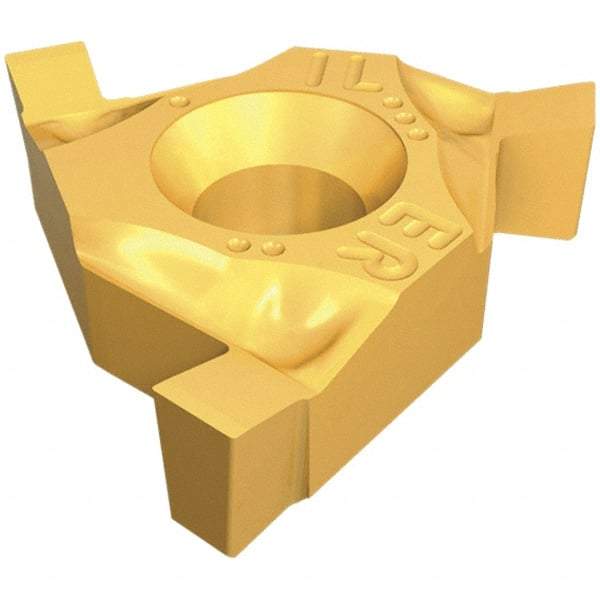

Iscar - 16GTMA Grade IC508, 2.22mm Cutting Width Carbide Grooving Insert - 2.1mm Max Depth of Cut, External Right & Internal Left Hand, 0.1mm Corner Radius, TiCN/TiN Finish
Item #: 46666756
Brand: Iscar
Model #: 6411119
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GTMA |
| Insert Size | 16 |
| Material | Carbide |
| Cutting Width (mm) | 2.22 |
| Cutting Width (Decimal Inch) | 0.0870 |
| Maximum Depth of Cut (mm) | 2.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0830 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC508 |
| Coating | TiCN/TiN |
| Insert Hand | External Right Internal Left |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Coating Process | PVD |
| ISO Number | GTMA 16ER/IL 222 IC508 |
| Manufacturers Catalog Number | 6411119 |
