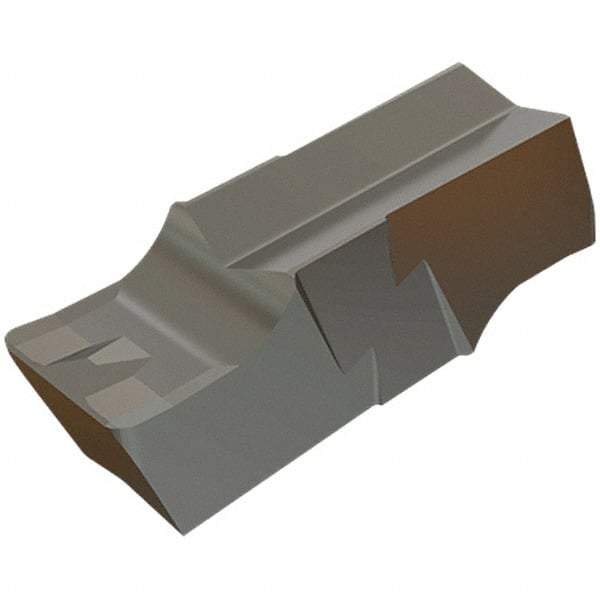

Iscar - 2.30-0.20GIPI Grade IC20, 2.3mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, 0.2mm Corner Radius, Uncoated
Item #: 46666731
Brand: Iscar
Model #: 6411136
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPI |
| Insert Size | 2.30-0.20 |
| Material | Carbide |
| Cutting Width (mm) | 2.30 |
| Cutting Width (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Relief Angle | 8 |
| Multi-Use Application | Grooving; Parting; Turning |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Series | Cut Grip |
| ISO Number | GIPI 2.30-0.20 IC20 |
| Manufacturers Catalog Number | 6411136 |
| Overall Width (mm) | 2.20 |
| Overall Width (Decimal Inch) | 0.0870 |
