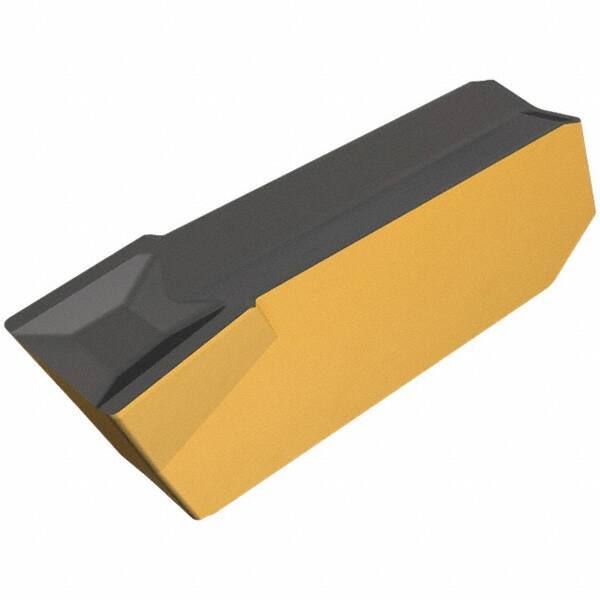

Iscar - 608GIMF Grade IC804, 6mm Cutting Width Carbide Grooving Insert - 3.6mm Max Depth of Cut, 0.8mm Corner Radius, AlTiN Finish
Item #: 46666558
Brand: Iscar
Model #: 6411643
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMF |
| Insert Size | 608 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 3.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1420 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC804 |
| Coating | AlTiN |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Series | Cut Grip |
| ISO Number | GIMF 608 IC804 |
| Manufacturers Catalog Number | 6411643 |
| Overall Width (mm) | 5.00 |
| Overall Width (Decimal Inch) | 0.1970 |
