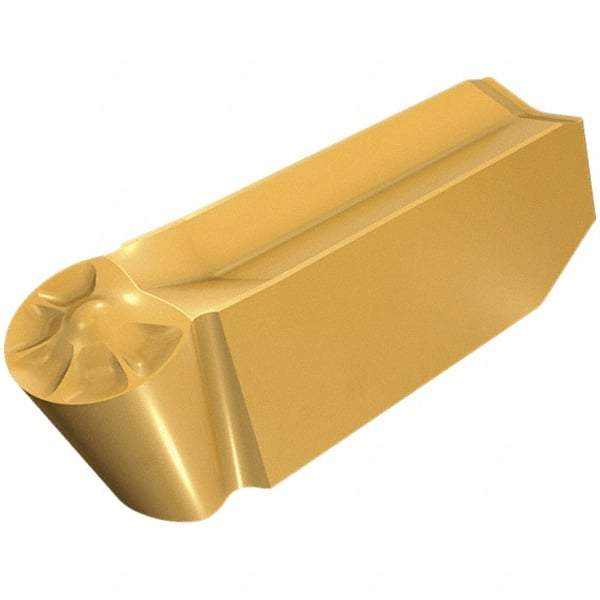

Iscar - 3.00-1.50GIPY Grade IC804, 3mm Cutting Width Carbide Grooving Insert - 1.5mm Corner Radius, AlTiN Finish
Item #: 46666541
Brand: Iscar
Model #: 6411645
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPY |
| Insert Size | 3.00-1.50 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC804 |
| Coating | AlTiN |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | PVD |
| Series | Cut Grip |
| ISO Number | GIPY 3.00-1.50 IC804 |
| Manufacturers Catalog Number | 6411645 |
| Overall Width (mm) | 2.40 |
| Overall Width (Decimal Inch) | 0.0940 |
