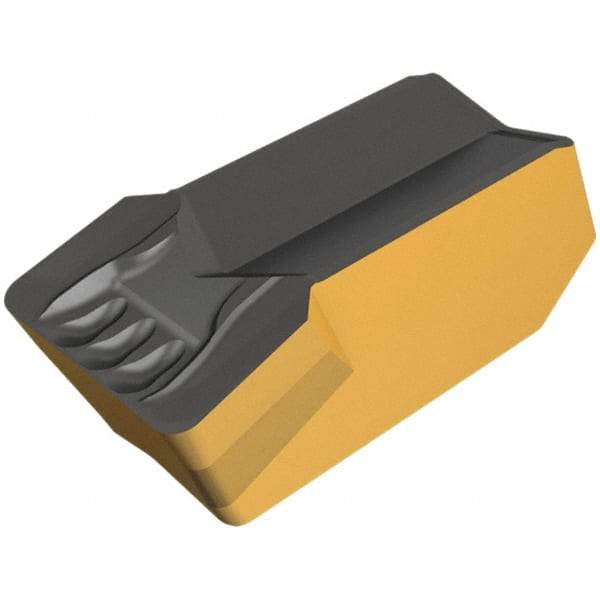

Iscar - 304GIMY Y Grade IC4, 3mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, 0.4mm Corner Radius, Uncoated
Item #: 46666517
Brand: Iscar
Model #: 6411671
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMY |
| Insert Size | 304 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Manufacturer's Grade | IC4 |
| Coating | Uncoated |
| Relief Angle | 7 |
| Chipbreaker | Y |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0160 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Series | Cut Grip |
| ISO Number | GIMY 304 IC4 |
| Manufacturers Catalog Number | 6411671 |
| Overall Width (mm) | 2.40 |
| Overall Width (Decimal Inch) | 0.0940 |
