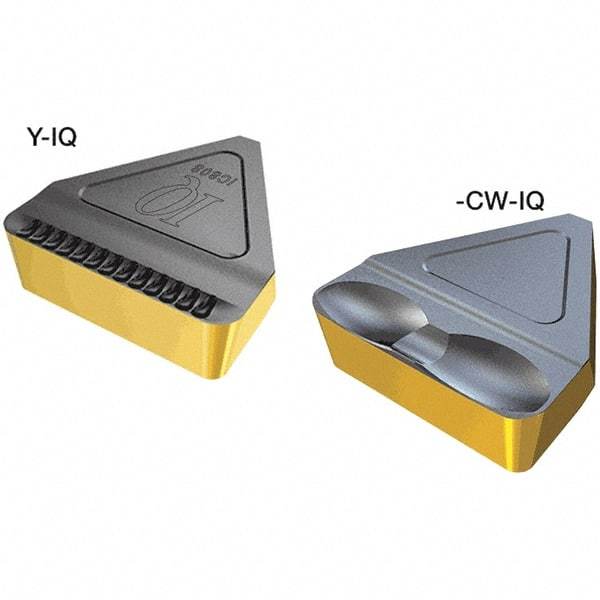

Iscar - 1212TIGER Grade IC830, 12mm Cutting Width Carbide Grooving Insert - 1.2mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 46666392
Brand: Iscar
Model #: 6411754
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIGER |
| Insert Size | 1212 |
| Material | Carbide |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4720 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Coating Process | PVD |
| Overall Length (mm) | 14.00 |
| Overall Length (Decimal Inch) | 0.5510 |
| Series | DoveIQGrip |
| ISO Number | TIGER 1212Y-IQ IC830 |
| Manufacturers Catalog Number | 6411754 |
| Included Angle | 61 |
| Insert Thickness (Decimal Inch) | 0.1990 |
| Insert Thickness (mm) | 5.0500 |
