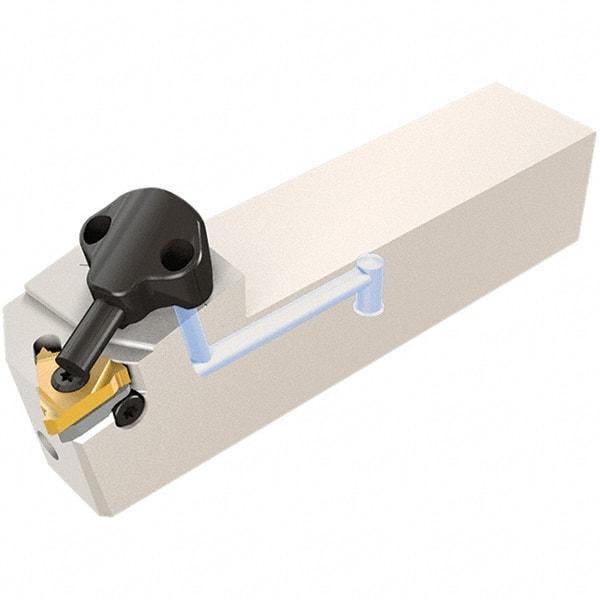

Iscar - 24N250PENTA PF Grade IC30N, 2.5mm Cutting Width Carbide Grooving Insert - 6.2mm Max Depth of Cut, 1.25mm Corner Radius, Uncoated
Item #: 46662102
Brand: Iscar
Model #: 3334959
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N250 |
| Material | Carbide |
| Cutting Width (mm) | 2.50 |
| Cutting Width (Decimal Inch) | 0.0980 |
| Maximum Depth of Cut (mm) | 6.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2440 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Relief Angle | 7 |
| Chipbreaker | PF |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0490 |
| Corner Radius (mm) | 1.25 |
| Corner Radius (Decimal Inch) | 0.0490 |
| Series | PentaCut |
| Rake Angle | 6 |
| ISO Number | PENTA 24N250PF125 IC30N |
| Manufacturers Catalog Number | 3334959 |
