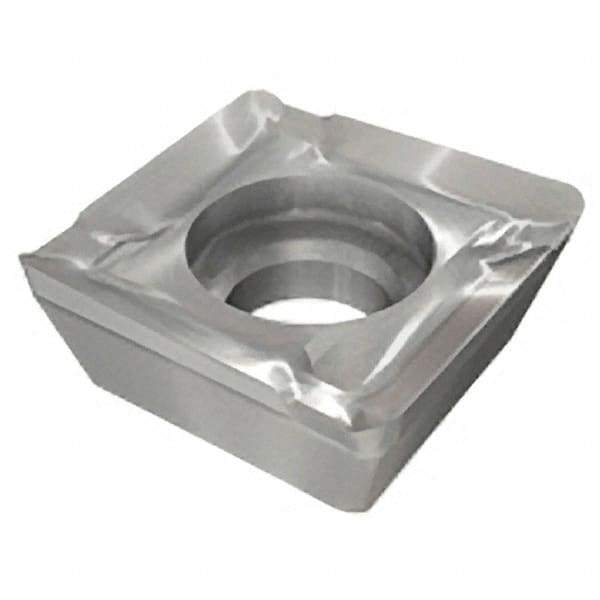

Iscar - SDMR1205 M Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 5.1mm Thick, 1mm Corner Radius
Item #: 46660932
Brand: Iscar
Model #: 3324772
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMR |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.10 |
| Thickness (Decimal Inch) | 0.2010 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Corner Radius (mm) | 1.00 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | M |
| Manufacturers Catalog Number | SDMR 1205PDR-HQ-M |
| ISO Number | SDMR 1205PDR-HQ-M |
| ANSI Number | SDMR 1205PDR-HQ-M |
