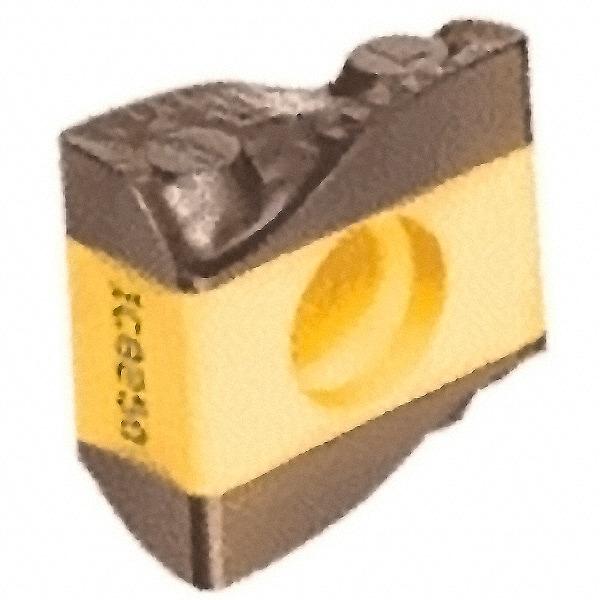

Iscar - LNMX110408 HT Grade IC830 Carbide Turning Insert - TiAlN/AlTiN/TiN Finish, Tangential, 11.4mm Thick, 0.8mm Corner Radius
Item #: 46659330
Brand: Iscar
Model #: 3308208
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 110408 |
| Material | Carbide |
| Thickness (Decimal Inch) | 0.4990 |
| Thickness (mm) | 11.40 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Chip Breaker | HT |
| Insert Length (Decimal Inch) | 0.4330 |
| Insert Length (mm) | 11 |
| ISO Number | LNMX 110408R-HT |
| Rake | Positive |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 3308208 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | None |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Multi Use Application | Turning |
| Shape | Tangential |
