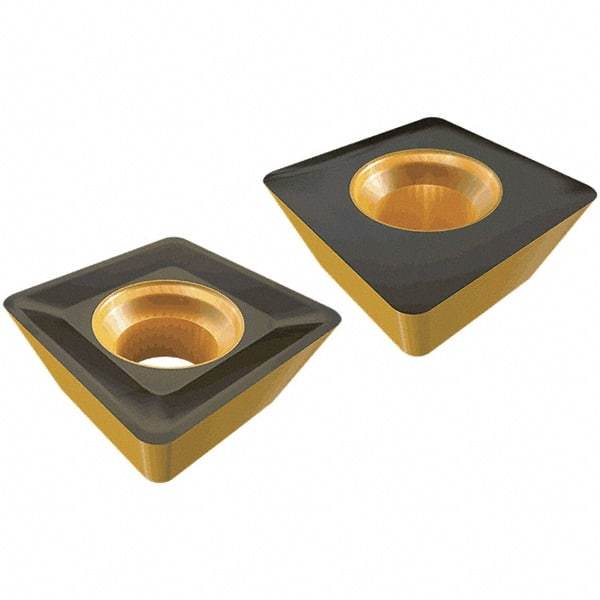

Iscar - SDHT100408 EN Grade IC5820 Carbide Milling Insert - Al2O3 Finish, 4.5mm Thick, 0.8mm Corner Radius
Item #: 46654760
Brand: Iscar
Model #: 3305260
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDHT |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC5820 |
| Coating | Al2O3 |
| Length (mm) | 10.00 |
| Length (Decimal Inch) | 0.3940 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | EN |
| Manufacturers Catalog Number | SDHT 100408-PDEN |
| ISO Number | SDHT 100408-PDEN |
| ANSI Number | SDHT 100408-PDEN |
