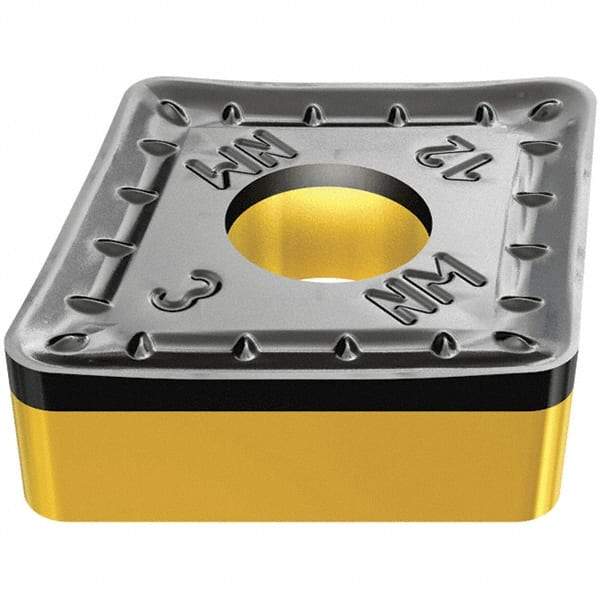

Iscar - CNMM643 NM Grade IC830 Carbide Turning Insert - TiAlN/AlTiN/TiN Finish, 80° Diamond, 19.05mm Inscr Circle, 6.35mm Thick, 1.2mm Corner Radius
Item #: 46654307
Brand: Iscar
Model #: 3308204
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 643 |
| Material | Carbide |
| Length (mm) | 19.30 |
| Length (Decimal Inch) | 0.7600 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Chip Breaker | NM |
| ISO Number | CNMM 643-NM |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 3308204 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Multi Use Application | Turning |
| Shape | Diamond |
