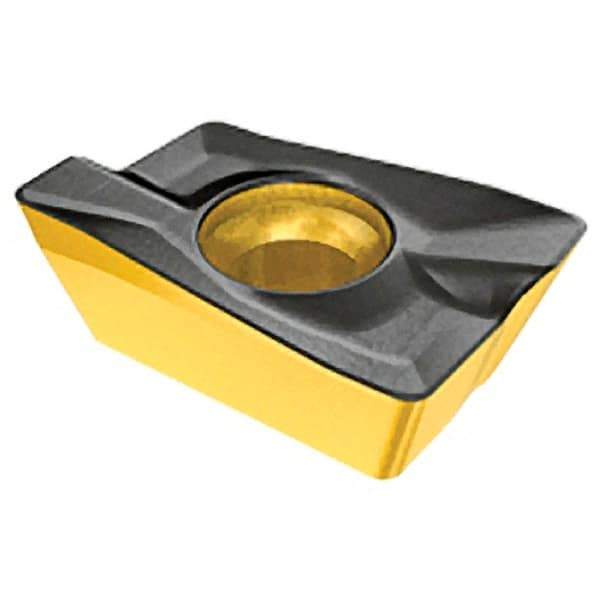

Iscar - HM90 ADCT150508 T Grade IC882 Carbide Milling Insert - TiAlN/TiN Finish, 5.85mm Thick, 0.8mm Corner Radius
Item #: 46654182
Brand: Iscar
Model #: 3309404
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 ADCT |
| Insert Size | 150508 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAlN/TiN |
| Width (mm) | 9.65 |
| Width (Decimal Inch) | 0.3800 |
| Length (mm) | 16.18 |
| Length (Decimal Inch) | 0.6370 |
| Thickness (mm) | 5.85 |
| Thickness (Decimal Inch) | 0.2300 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Hexagon |
| Insert Hand | Right Hand |
| Chipbreaker | T |
| Maximum Depth of Cut (mm) | 14.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5710 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM90 ADCT 150508R-T |
| ISO Number | HM90 ADCT 150508R-T |
| ANSI Number | HM90 ADCT 150508R-T |
