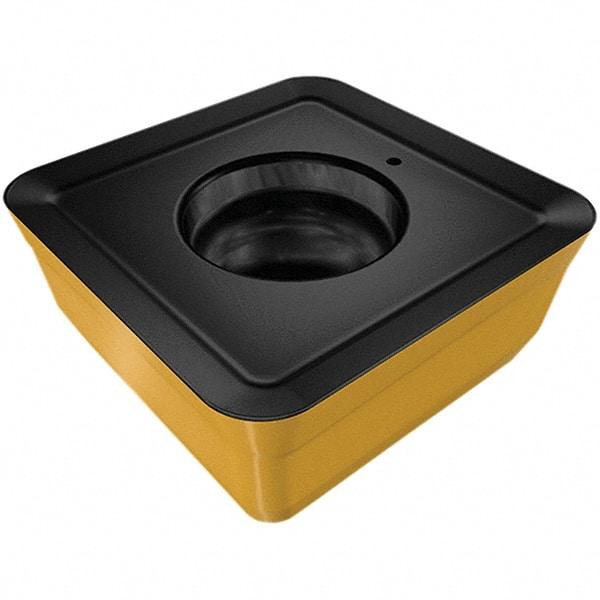

Iscar - FF WOCT09T320 T Grade IC882 Carbide Milling Insert - TiAlN/TiN Finish, 6.5mm Thick, 14.5mm Inscribed Circle, 5/64" Corner Radius
Item #: 46654141
Brand: Iscar
Model #: 3309418
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FF WOCT |
| Insert Size | 09T320 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAlN/TiN |
| Length (mm) | 10.60 |
| Length (Decimal Inch) | 0.4170 |
| Inscribed Circle (mm) | 14.50 |
| Inscribed Circle (Decimal Inch) | 0.5710 |
| Thickness (mm) | 6.50 |
| Thickness (Decimal Inch) | 0.2560 |
| Corner Radius (Inch) | 5/64 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 25.000 |
| Coating Process | PVD |
| Chipbreaker | T |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Manufacturers Catalog Number | FF WOCT 09T320T |
| ISO Number | FF WOCT 09T320T |
| ANSI Number | FF WOCT 09T320T |
