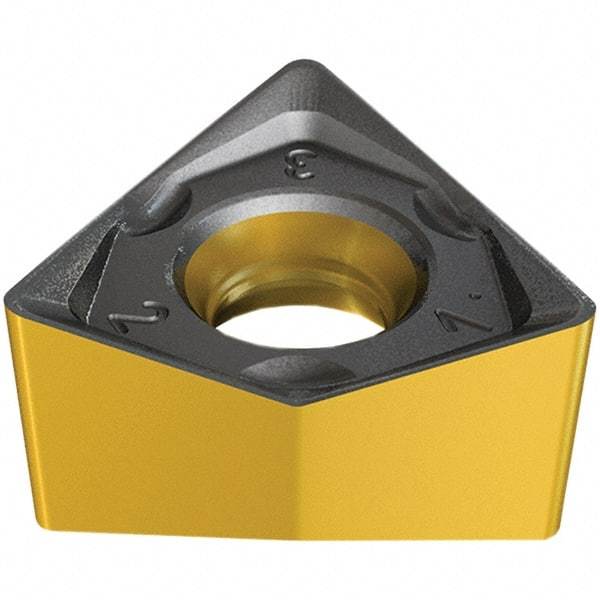

Iscar - H690 WNMU070516 PNTR Grade IC845 Carbide Milling Insert - AlTiN Finish, 5.8mm Thick, 11.5mm Inscribed Circle, 1.6mm Corner Radius
Item #: 46652830
Brand: Iscar
Model #: 3318216
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 WNMU |
| Insert Size | 070516 |
| Material | Carbide |
| Manufacturer's Grade | IC845 |
| Coating | AlTiN |
| Length (mm) | 7.30 |
| Length (Decimal Inch) | 0.2870 |
| Inscribed Circle (mm) | 11.50 |
| Inscribed Circle (Decimal Inch) | 0.4530 |
| Thickness (mm) | 5.80 |
| Thickness (Decimal Inch) | 0.2280 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PNTR |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H690 WNMU 070516PNTR |
| ISO Number | H690 WNMU 070516PNTR |
| ANSI Number | H690 WNMU 070516PNTR |
