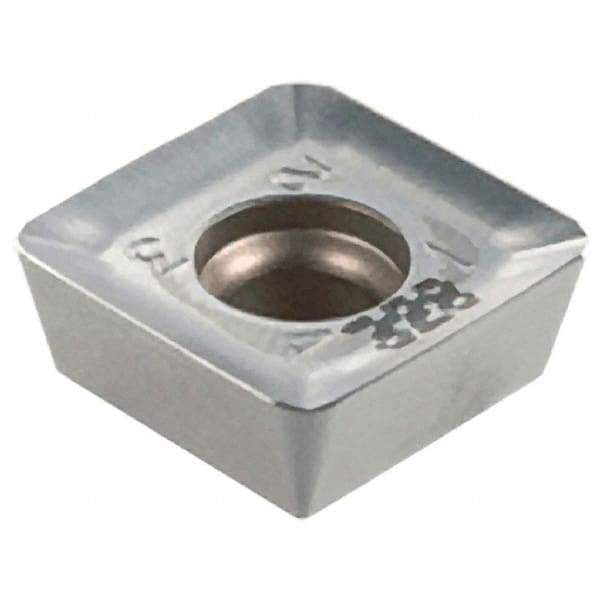

Iscar - QDCT120508 PDN Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 4.92mm Thick, 0.8mm Corner Radius
Item #: 46650974
Brand: Iscar
Model #: 3324792
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDCT |
| Insert Size | 120508 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.92 |
| Thickness (Decimal Inch) | 0.1940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | PDN |
| Manufacturers Catalog Number | QDCT 120508-PDN |
| ISO Number | QDCT 120508-PDN |
| ANSI Number | QDCT 120508-PDN |
