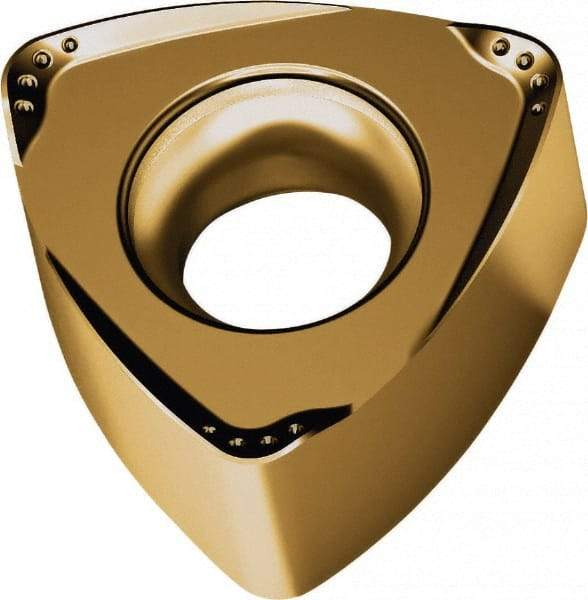

Walter - P236962.0 F55 Grade WKP35G Carbide Milling Insert - TiAlN/TiN Finish, 7mm Thick, 13.5mm Inscribed Circle, 1.6mm Corner Radius
Item #: 46626982
Brand: Walter
Model #: 7347296
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P23696 |
| Insert Size | 2.0 |
| Material | Carbide |
| Material Grade | K35/P35/K35 |
| Manufacturer's Grade | WKP35G |
| Coating | TiAlN/TiN |
| Inscribed Circle (mm) | 13.50 |
| Thickness (mm) | 7.00 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 5.50 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Toric |
| Insert Hand | Right Hand |
| Chipbreaker | F55 |
| Manufacturers Catalog Number | P23696-2.0 WKP35G |
