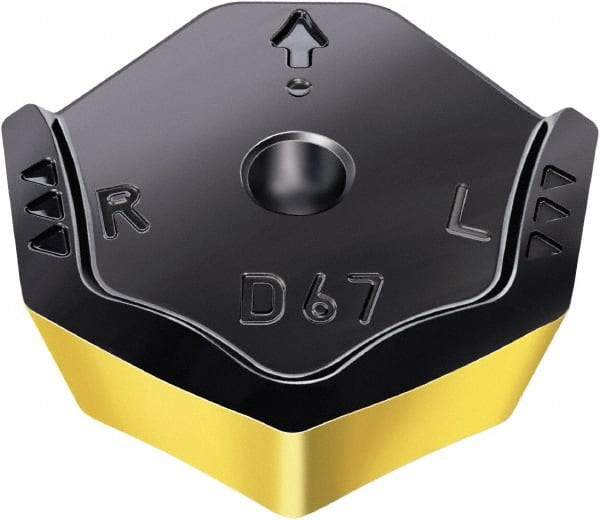

Walter - XNHX0906 D67 Grade WHH15 Carbide Milling Insert - TiAlN Finish, 1/4" Thick, 3/4" Inscribed Circle, 0.6mm Corner Radius
Item #: 46626537
Brand: Walter
Model #: 7220871
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNHX |
| Insert Size | 0906 |
| Material | Carbide |
| Material Grade | P15 |
| Manufacturer's Grade | WHH15 |
| Coating | TiAlN |
| Length (mm) | 9.00 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Corner Radius (mm) | 0.60 |
| Hole Diameter (mm) | 2.80 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Proprietary |
| Insert Hand | Neutral |
| Chipbreaker | D67 |
| Maximum Depth of Cut (mm) | 9.00 |
| Manufacturers Catalog Number | XNHX0906ANN-D67 WHH15 |
