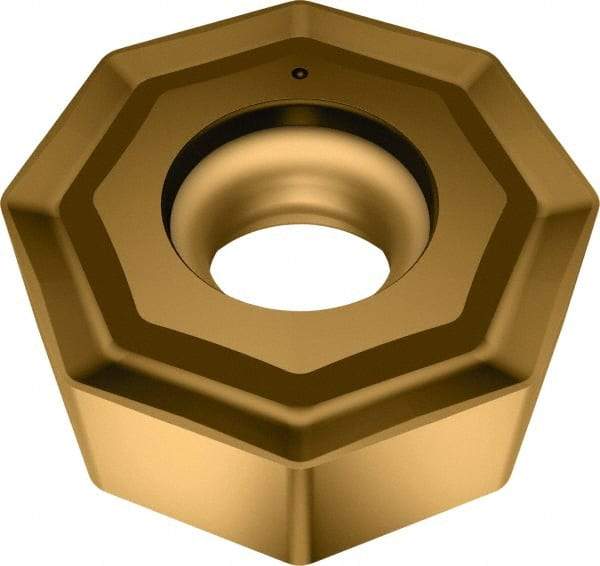

Walter - ONHU050408 F67 Grade WSP45S Carbide Milling Insert - TiAlN/Al2O3 Finish, 4.86mm Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 46626453
Brand: Walter
Model #: 7304975
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 050408 |
| Material | Carbide |
| Material Grade | S45/P45/M45 |
| Manufacturer's Grade | WSP45S |
| Coating | TiAlN/Al2O3 |
| Length (mm) | 5.26 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (mm) | 4.86 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | F67 |
| Maximum Depth of Cut (mm) | 5.26 |
| Manufacturers Catalog Number | ONHU050408-F67 WSP45S |
