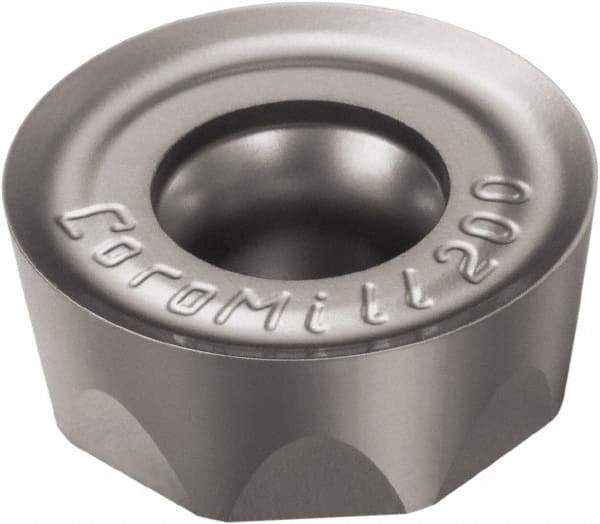

Sandvik Coromant - RCHT1906 PL Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 6.35mm Thick, 19.05mm Inscribed Circle, 9.53mm Corner Radius
Item #: 46612925
Brand: Sandvik Coromant
Model #: 7100918
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHT |
| Insert Size | 1906 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Corner Radius (mm) | 9.53 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PL |
| Manufacturers Catalog Number | RCHT 19 06 00-PL 1130 |
