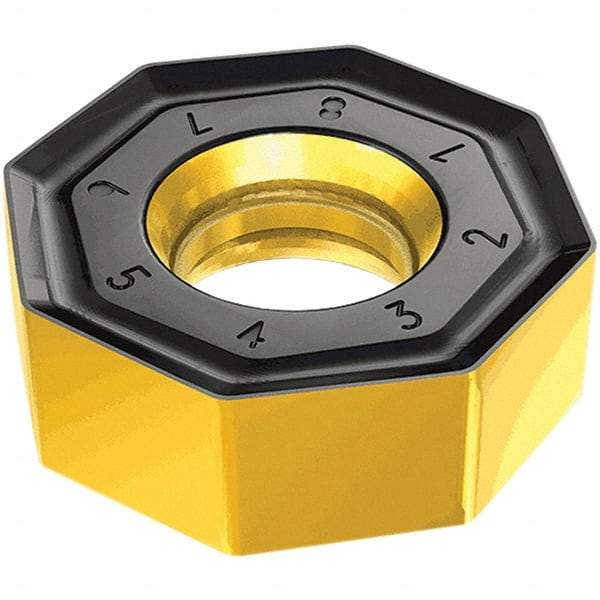

Iscar - ONHU0706 W Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 6.5mm Thick, 18.8mm Inscribed Circle
Item #: 46030805
Brand: Iscar
Model #: 5668874
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 0706 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Inscribed Circle (mm) | 18.80 |
| Inscribed Circle (Decimal Inch) | 0.7400 |
| Thickness (mm) | 6.50 |
| Thickness (Decimal Inch) | 0.2560 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | W |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Manufacturers Catalog Number | ONHU 0706AN-R-W |
| ISO Number | ONHU 0706AN-R-W |
| ANSI Number | ONHU 0706AN-R-W |
