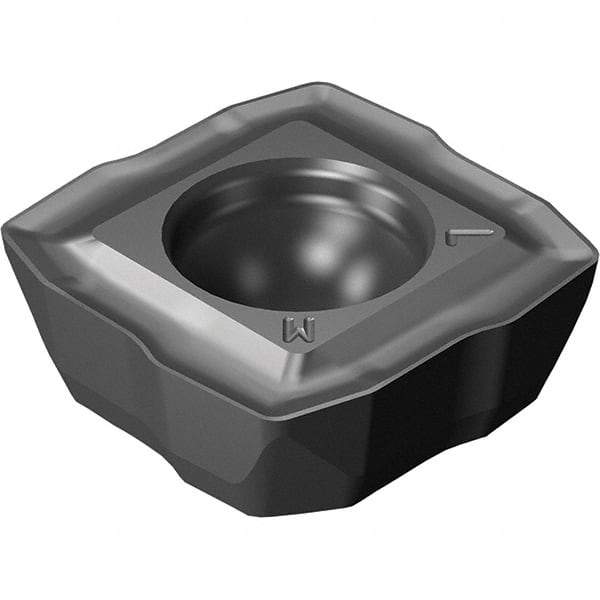

Sandvik Coromant - 8800503 LM Grade N134 Carbide Indexable Drill Insert - Diamond like carbon Finish, 8.4mm Inscribed Circle
Item #: 45974334
Brand: Sandvik Coromant
Model #: 7362165
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 0503 |
| Material | Carbide |
| Manufacturer's Grade | N134 |
| Inscribed Circle (mm) | 8.40 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 0.50 |
| Length (mm) | 19.0000 |
| Length (Decimal Inch) | 0.7480 |
| Coating | Diamond like carbon |
| Coating Process | CVD |
| Chipbreaker | LM |
