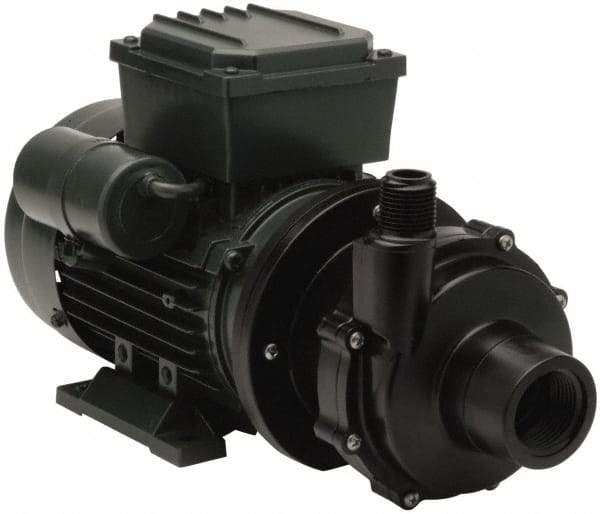

Finish Thompson - Permanent Split Cap Motor, 115 Volt, 2.4 Amp, 1 Phase, 1/4 HP, 3500 RPM, Carbon Filled PVDF Straight Pump - 1 Inch Inlet, 1/2 Inch Outlet, 12.6 Max Head psi, Carbon Filled PVDF Impeller, Ceramic Shaft, FKM Seal
Item #: 45855814
Brand: Finish Thompson
Model #: DB4V-M613
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Current Type | AC |
| Input Voltage | 115 |
| Amperage Rating | 2.4 |
| Phase | 1 |
| Horsepower | 1/4 |
| Motor Type | Permanent Split Cap |
| Inlet Size (Inch) | 1 |
| Outlet Size (Inch) | 1/2 |
| Maximum Flow Rate (GPM) | 18.00 |
| Maximum Head Pressure | 12.6 |
| Housing Material | Carbon Filled PVDF |
| Impeller Material | Carbon Filled PVDF |
| Shaft Material | Ceramic |
| Seal Material | FKM |
| Seal Type | O-Ring |
| GPM @ 5 Feet of Head | 18 |
| GPM @ 10 Feet of Head | 16.000 |
| GPM @ 15 Feet of Head | 13.5 |
| GPM @ 20 Feet of Head | 10.500 |
| Frequency Hz | 60 |
| Thermal Overload Protection | No |
| RPM | 3500.000 |
| End Connections | Conduit Box |
