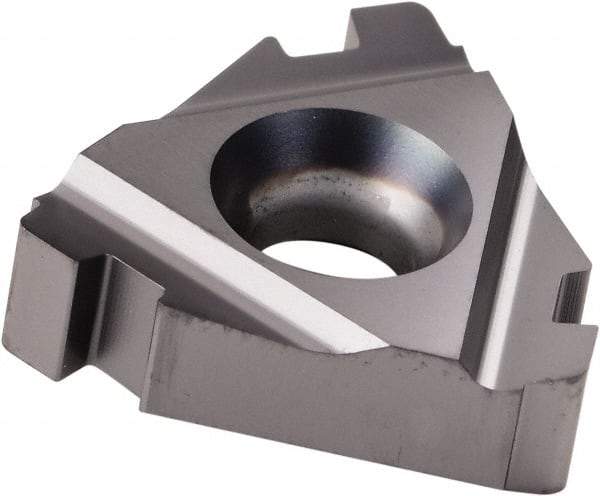

Kennametal - 22NR Internal Right Hand 5 API Buttress Laydown Threading Insert - Grade KC5025, AlTiN Coated Carbide, 12.7mm Inscribed Circle
Item #: 45786654
Brand: Kennametal
Model #: 1744006
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | API Buttress |
| Manufacturer's Grade | KC5025 |
| Threads Per Inch | 5 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1827 |
| Thickness (mm) | 4.64 |
| Hole Diameter (mm) | 4.88 |
| Hole Diameter (Decimal Inch) | 0.1920 |
| Coating | AlTiN |
| Coating Process | PVD |
