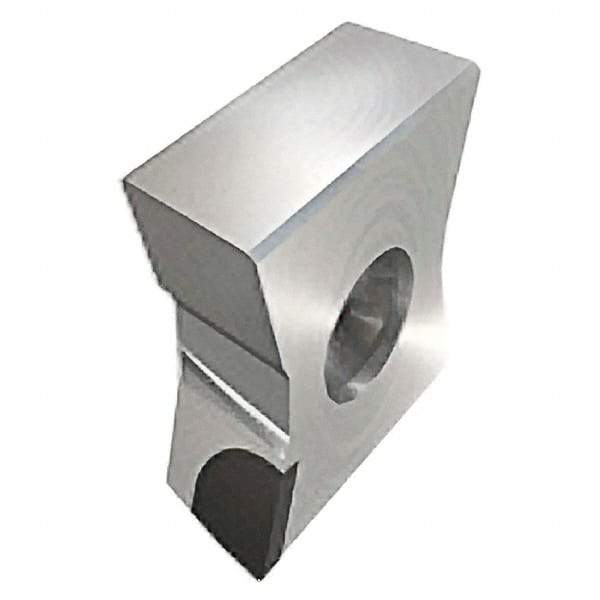

Iscar - LNAR150604 S Grade ID5 PCD Milling Insert - Uncoated, 0.551" Thick, 0.4mm Corner Radius
Item #: 45472958
Brand: Iscar
Model #: 5604757
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | LNAR |
| Insert Size | 150604 |
| Material | PCD |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2362 |
| Length (Decimal Inch) | 0.5930 |
| Thickness (Decimal Inch) | 0.5510 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 0.000 |
| Rake Angle | 16 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | S |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| ISO Number | LNAR 150604PN-R-S |
