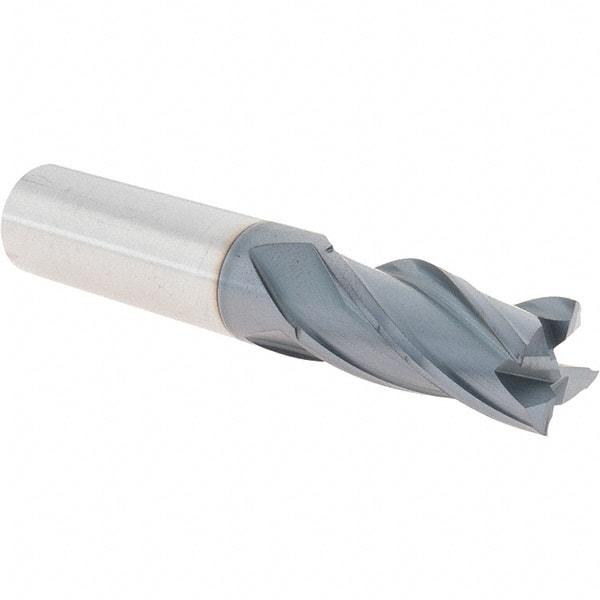

Value Collection - 5/8", 1-1/4" LOC, 5/8" Shank Diam, 3-1/2" OAL, 4 Flute, Solid Carbide Square End Mill - Single End, Uncoated, 30° Helix
Item #: 45404290
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Non-Center Cutting applications have peripheral teeth allowing for the user to side (radial) cut or contour an exterior surface. Used in applications where plunge cutting is not necessary.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 5/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Center Cutting | NonCenter Cutting |
| Helix Angle | 30.00 |
| Length Type | Regular |
| Mill Diameter Tolerance (Decimal Inch) | 0/-0.0012 |
| Material Grade | Micrograin |
| Shank Diameter Tolerance (Decimal Inch) | 0/-0.0003 |
