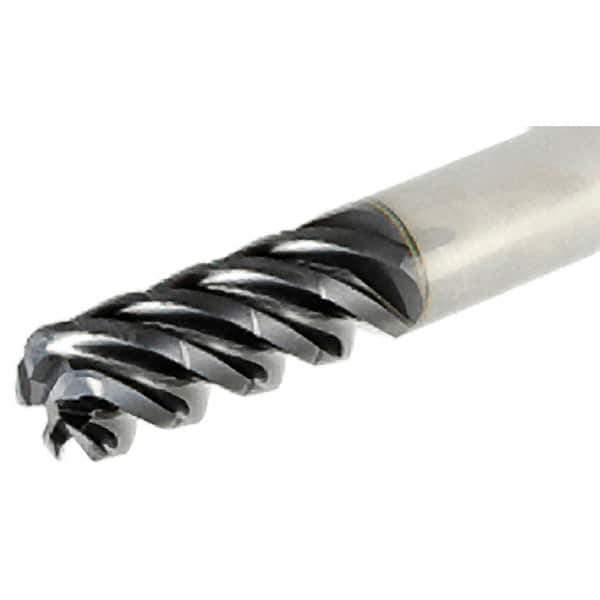

Iscar - 6mm Diam, Variable Pitch, 12mm LOC, 4 Flute Solid Carbide 1mm Corner Radius Roughing End Mill - TiAlN Finish, 57mm OAL, 6mm Shank Diam, Single End, 38° Helix
Item #: 45394616
Brand: Iscar
Model #: 5682653
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 4 |
| Pitch | Variable |
| Length of Cut (mm) | 12.00 |
| Length of Cut (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 6.00 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Overall Length (mm) | 57.00 |
| Centercutting | NonCenter Cutting |
| Helix Angle | 38.00 |
| Extended Reach | No |
| Corner Radius (mm) | 1.00 |
| Coolant Induced | No |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Type | Stub |
| Flute Type | Spiral |
| Helix Style | High |
| Mill Diameter Tolerance (mm) | -0.025 to 0.047 |
| Shank Diameter Tolerance (mm) | 0.000/-0.009 |
| Chipbreaker | Yes |
