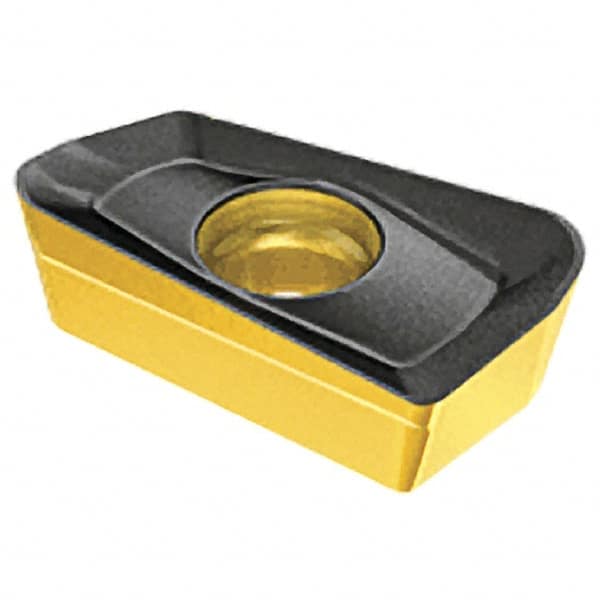

Iscar - HPANKT0702PNTR IC30N Cermet Milling Insert
Item #: 45371622
Brand: Iscar
Model #: 5605199
Product Specifications
| Insert Style | HP ANKT |
| Insert Size | 0702 |
| Material | Cermet |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.1770 |
| Length (Decimal Inch) | 0.3425 |
| Thickness (Decimal Inch) | 0.1024 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0.000 |
| Rake Angle | 26 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 7.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| ISO Number | HP ANKT 0702PNTR |
