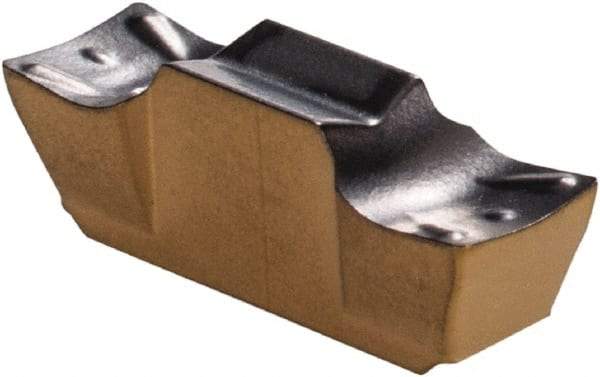

Iscar - 3002GEMI M Grade IC808, 0.1181" Cutting Width Carbide Grooving Insert - 0.051" Max Depth of Cut, Neutral, 0.0079" Corner Radius, TiAlN Finish
Item #: 45370574
Brand: Iscar
Model #: 6404544
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEMI |
| Insert Size | 3002 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.0510 |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Chipbreaker | M |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3950 |
| Series | Cut Grip |
