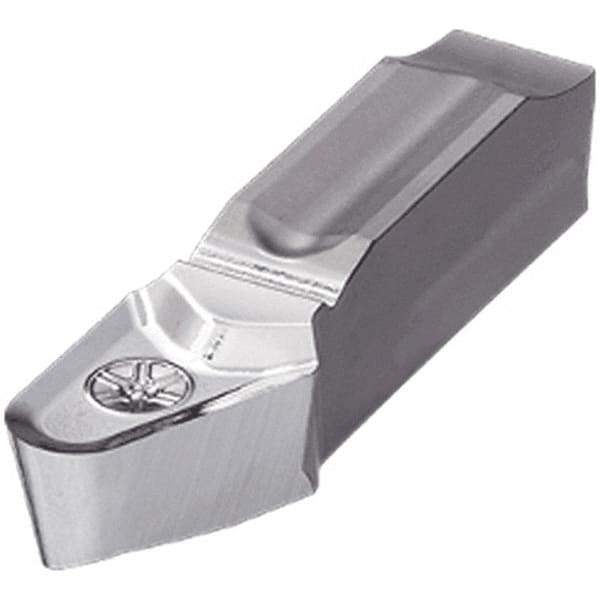

Iscar - 10S3R25FGPAM A Grade IC20, Carbide Grooving Insert - 12mm Max Depth of Cut, Neutral, 3mm Corner Radius, Uncoated
Item #: 45370491
Brand: Iscar
Model #: 6493758
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FGPAM |
| Insert Size | 10S3R25 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 10 |
| Chipbreaker | A |
| Multi-Use Tool | No |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Series | Fix-Grip |
