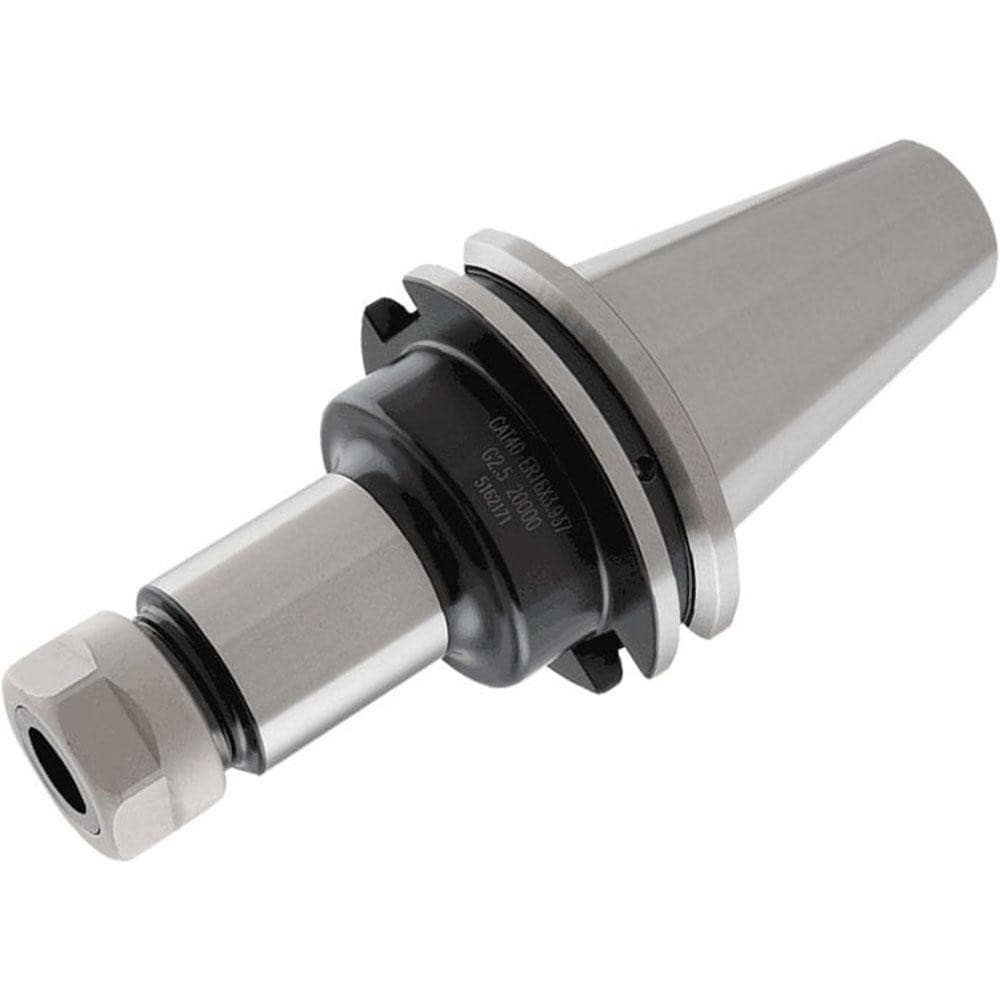

Collet Chuck: 0.1180 to 1.0240" Capacity, Full Grip Collet, 1.5748" Shank Dia, Taper Shank, Dual Contact
Item #: 33990037
Brand: Tungaloy
Model #: 4510472
Product Specifications
| Collet System | Full Grip |
| Collet Series | ER40 |
| Shank Type | Taper |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 3.3590 in |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1180 |
| Maximum Collet Capacity (Decimal Inch) | 1.0240 |
| Overall Length (Decimal Inch) | 3.36 |
| Actuator Type | Wrench |
| Dual Contact | Yes |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.4800 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 2.4800 |
| UNSPSC Code | 27112808 |
