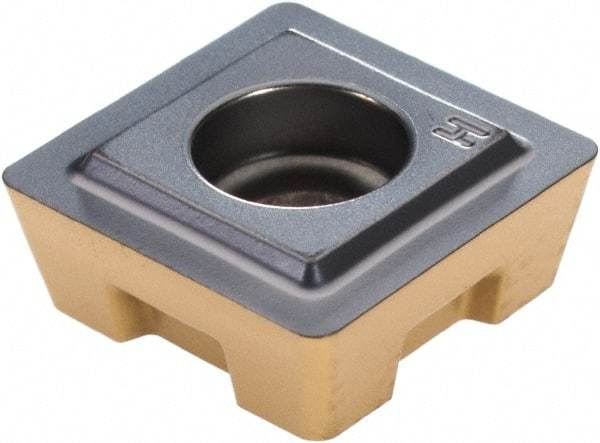

Iscar - SOMT120408 HD Grade IC808 Carbide Indexable Drill Insert - TiAlN/AlTiN/TiN Finish, Square, 1/2" Inscribed Circle
Item #: 45261187
Brand: Iscar
Model #: 5567124
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN, AlTiN, TiN is a multilayer coating that is abrasive-resistant and has a high hardness. Ideal for high speed applications and used for machining nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 120408 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Shape | Square |
| Coating | TiAlN/AlTiN/TiN |
| Coating Process | PVD |
| Chipbreaker | HD |
