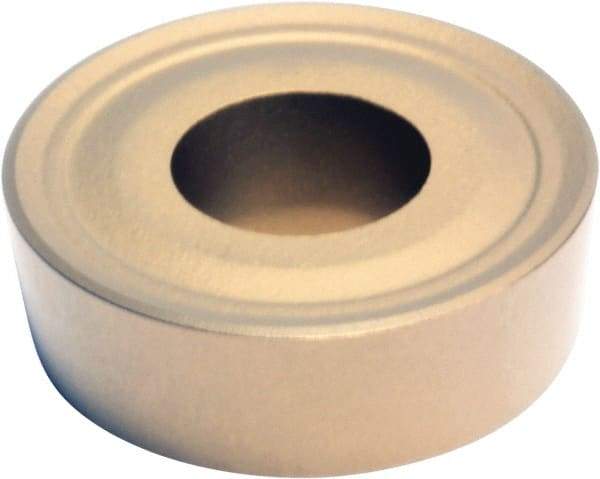

Sumitomo - RCMX200600 RP Grade AC830P Carbide Turning Insert - Al2O3 Finish, Round, 20mm Inscr Circle, 1/4" Thick
Item #: 45218047
Brand: Sumitomo
Model #: 19RB313
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 200600 |
| Material | Carbide |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7870 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | AC830P |
| Coating | Al2O3 |
| Chip Breaker | RP |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Rake | Negative |
| Rake Angle | -15 |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
