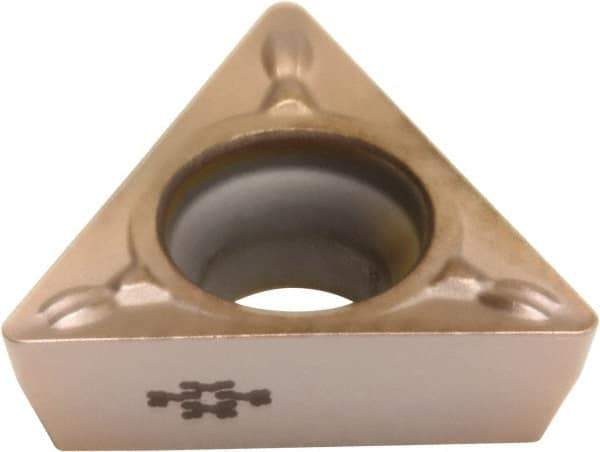

Sumitomo - TPMT221 ESU Grade T3000Z Cermet Turning Insert - TiN/AlN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 45212867
Brand: Sumitomo
Model #: 19EY108
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 221 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | T3000Z |
| Coating | TiN/AlN |
| Chip Breaker | ESU |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Rake | Positive |
| Rake Angle | 8 |
| Relief Angle | 11 |
| Proprietary Coating Designation | ZX |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
