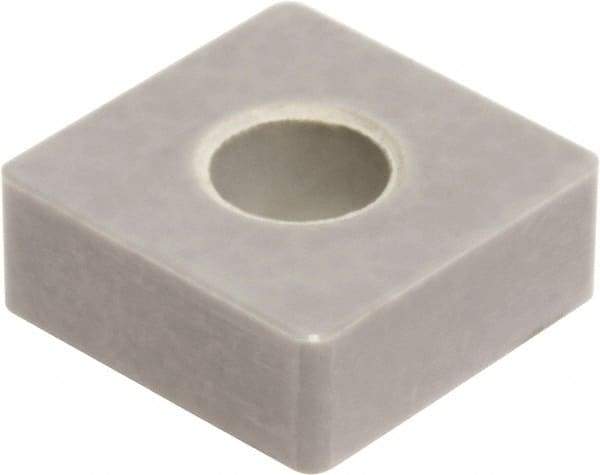

Sumitomo - SNGA432 Grade WX2000 Ceramic Turning Insert - 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 45207560
Brand: Sumitomo
Model #: U103456
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNGA |
| Insert Size | 432 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WX2000 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Relief Angle | 0 |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
