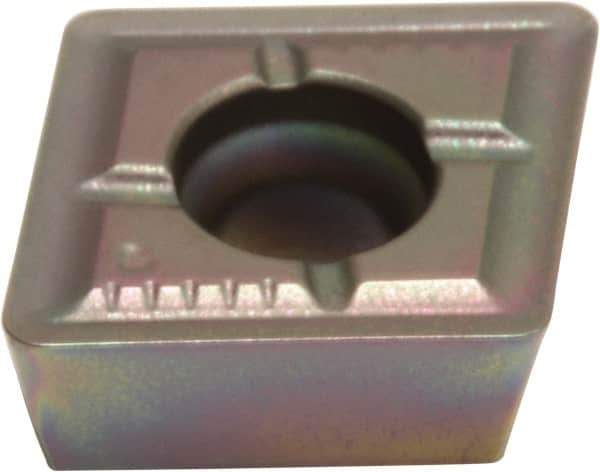

Sumitomo - WDXT052504 G Grade DL1500 Carbide Indexable Drill Insert - DLC Finish, Parallelogram, 5mm Inscribed Circle
Item #: 45206612
Brand: Sumitomo
Model #: 1AJV064
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Diamond-like carbon (DLC) is an extremely hard and durable coating that is similar to diamond. It is commonly used on stainless steel, ceramics, plastics and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | WDXT |
| Insert Size | 052504 |
| Material | Carbide |
| Manufacturer's Grade | DL1500 |
| Inscribed Circle (mm) | 5.00 |
| Inscribed Circle (Decimal Inch) | 0.1969 |
| Thickness (Decimal Inch) | 0.0984 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Parallelogram |
| Width (Decimal Inch) | 0.1969 |
| Coating | DLC |
| Cutting Direction | Right Hand |
| Chipbreaker | G |
