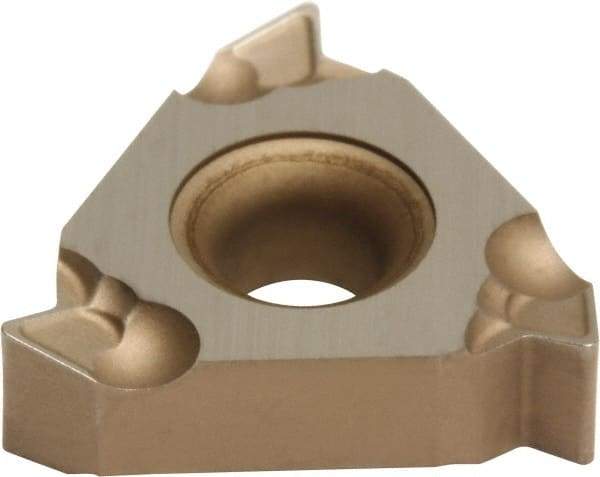

Sumitomo - TUE External Right Hand 12 Full Profile (Inch) Laydown Threading Insert - Grade A30, Uncoated Coated Carbide
Item #: 45205192
Brand: Sumitomo
Model #: 1C18011
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TUE |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Full Profile (Inch) |
| Material Grade | C5A |
| Manufacturer's Grade | A30 |
| Threads Per Inch | 12 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1430 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0110 |
