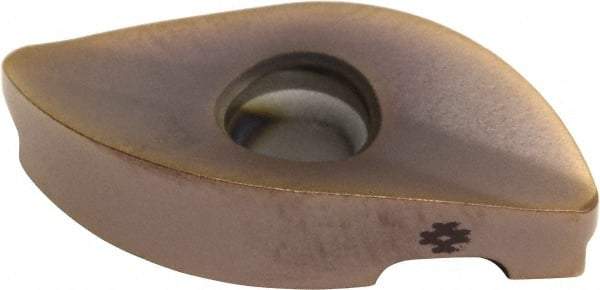

Sumitomo - ZNMT.CX4 Grade ACZ310 Carbide Milling Insert - TiN/AlN Finish, 0.224" Thick, 1/2" Corner Radius
Item #: 45203445
Brand: Sumitomo
Model #: 14BRW3M
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZNMT.CX |
| Insert Size | 4 |
| Material | Carbide |
| Manufacturer's Grade | ACZ310 |
| Coating | TiN/AlN |
| Width (Decimal Inch) | 0.4800 |
| Length (Decimal Inch) | 0.8870 |
| Thickness (Decimal Inch) | 0.2240 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Coating Process | PVD |
| Shape | Ball Nose Rounded Tip |
| Cutter Series Compatibility | WBMR |
