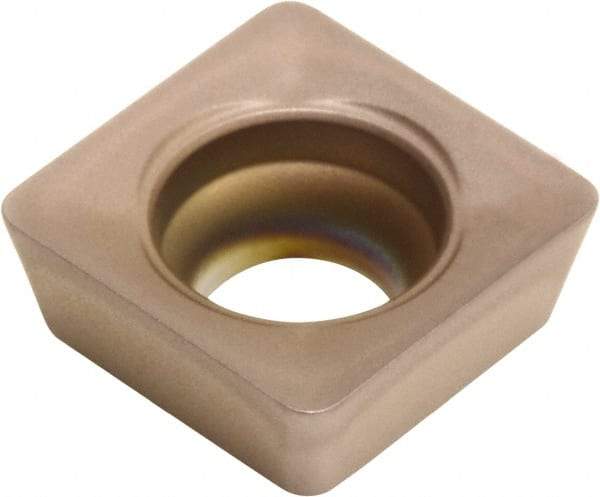

Sumitomo - SPMT32.52 ENX Grade ACZ310 Carbide Turning Insert - TiN/AlN Finish, 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 45201969
Brand: Sumitomo
Model #: 14BR247
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | ACZ310 |
| Coating | TiN/AlN |
| Chip Breaker | ENX |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 11 |
| Relief Angle | 11 |
| Proprietary Coating Designation | ZX |
| Coating Process | PVD |
| Included Angle | 90 |
| Insert Holding Method | Screw |
| Shape | Square |
