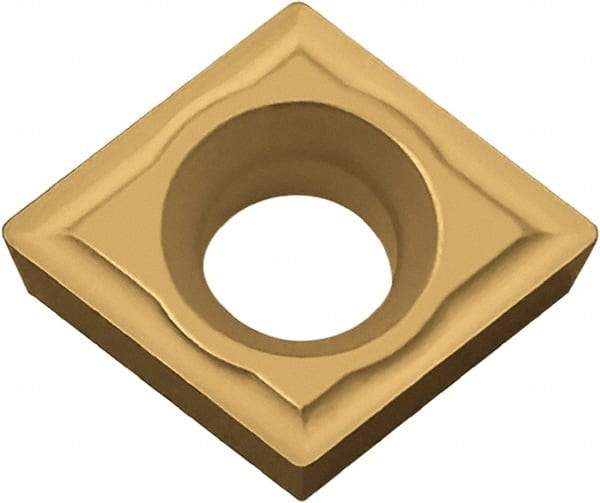

Kyocera - CPMH25151 Grade CA5515 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 5/16" Inscr Circle, 0.093" Thick, 1/64" Corner Radius
Item #: 45196474
Brand: Kyocera
Model #: 8818575
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPMH |
| Insert Size | 25151 |
| Material | Carbide |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.0930 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | CA5515 |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (Decimal Inch) | 0.1378 |
| ISO Number | CPMH080204 |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CA5 |
| Insert Holding Method | Screw |
| Shape | Diamond |
