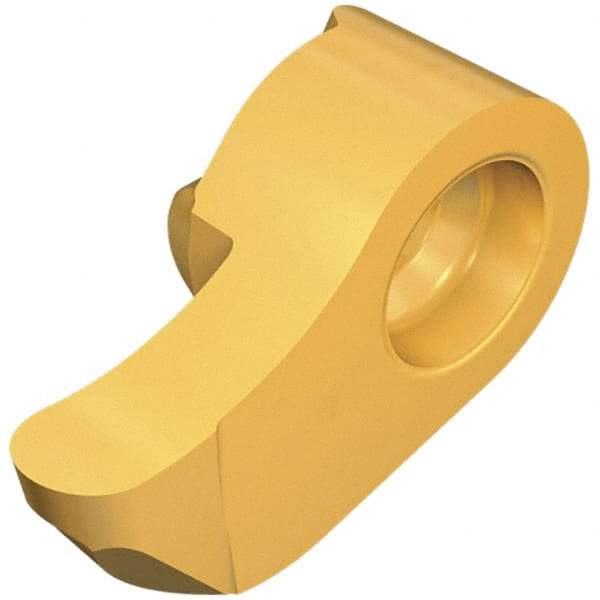

Iscar - 1115200GIQR Grade IC528, 2.01mm Cutting Width Carbide Grooving Insert - 6.3mm Max Depth of Cut, Right Hand, 1mm Corner Radius, TiCN Finish
Item #: 45193182
Brand: Iscar
Model #: 6403918
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 1115200 |
| Material | Carbide |
| Cutting Width (mm) | 2.01 |
| Cutting Width (Decimal Inch) | 0.0790 |
| Maximum Depth of Cut (mm) | 6.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2480 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC528 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0390 |
| Coating Process | PVD |
| Overall Length (mm) | 14.61 |
| Overall Length (Decimal Inch) | 0.5750 |
| Series | ChamGroove |
| ISO Number | GIQR 11-15-2.00-R100 |
| Manufacturers Catalog Number | GIQR 11-15-2.00-R100 |
