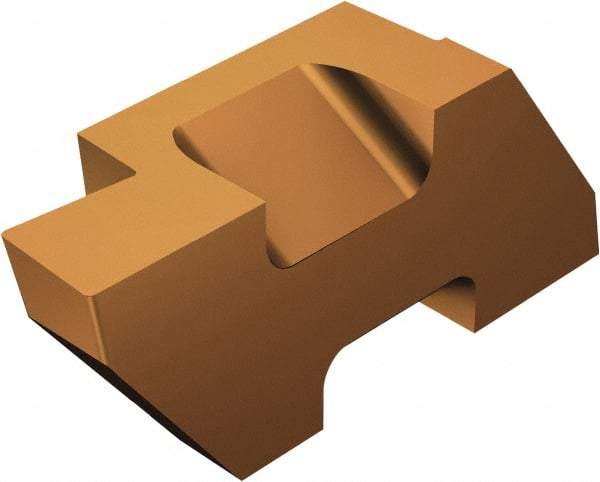

Sandvik Coromant - 2TLG Grade 1125, 1.04mm Cutting Width Carbide Grooving Insert - 1.27mm Max Depth of Cut, Left Hand, 0.09mm Corner Radius, TiCrAlN/TiAlN Finish
Item #: 44940229
Brand: Sandvik Coromant
Model #: 5846479
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 1.04 |
| Cutting Width (Decimal Inch) | 0.0410 |
| Maximum Depth of Cut (mm) | 1.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Manufacturer's Grade | 1125 |
| Coating | TiCrAlN/TiAlN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.56 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Relief Angle | 10 |
| Insert Seat Size | 2 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0035 |
| Maximum Corner Radius (Decimal Inch) | 0.0035 |
| Corner Radius (mm) | 0.09 |
| Corner Radius (Decimal Inch) | 0.0035 |
| Coating Process | PVD |
| Overall Length (mm) | 8.74 |
| Overall Length (Decimal Inch) | 0.3441 |
| Series | Top Lok |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | TLG-2041L 1125 |
| Manufacturers Catalog Number | TLG-2041L 1125 |
| Overall Width (mm) | 1.04 |
| Overall Width (Decimal Inch) | 0.0410 |
| Insert Thickness (Decimal Inch) | 0.2190 |
