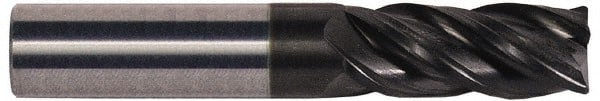

Accupro - 5mm Diam 4 Flute Solid Carbide 0.0098" Chamfer Width Corner Chamfer End Mill
Item #: 44863603
Brand: Accupro
Model #: 446MM01969C11
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Mill Diameter (Decimal Inch) | 0.1969 |
| End Type | Corner Chamfer |
| Chamfer Width (mm) | 0.250 |
| Chamfer Width (Decimal Inch) | 0.0098 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (mm) | 16.00 |
| Length of Cut (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 65.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Helix | Yes |
| Chamfer Angle | 45 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Shank Diameter Tolerance (Decimal Inch) | +0.0001/-0.0004 |
| Extended Reach | No |
