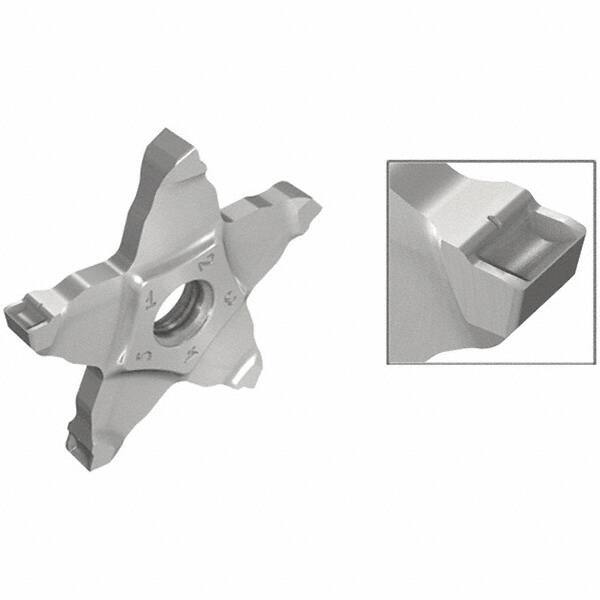

Iscar - PENTA C IC908 Grade, 0.059" Cutting Width, Carbide Cutoff Insert - 8° Right Hand Lead Angle, 0.0028" Cnr Rad, TiAlN Coated, Other End
Item #: 44748291
Brand: Iscar
Model #: 6003643
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | PentaCut |
| Chipbreaker | C |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0028 |
| Corner Radius (mm) | 0.07 |
| Insert Holding Method | Screw |
